Waveshare RS232 RS485 To RJ45 Ethernet Serial Server Dual Channels Independent Operation Dual Ethernet Ports Common Network Ports Module Bi-Directional Transparent Transmission

Dispositivos compatibles: Ordenador personal
Color: RS232 RS485 a Ethernet RJ45
Dimensiones del producto: largo x ancho x alto: 7,8 x 7,2 x 2,4 centímetros
Marca: Waveshare
Cantidad de productos por paquete: 1
Fabricante: Waveshare

- RS232 RS485 To RJ45 Ethernet Serial Server, RS232 And RS485 Dual Channels Independent Operation, Dual Ethernet Ports, Rail-Mount Industrial Isolated Serial Module, Bi-Directional Transparent Transmission-Dual serial ports + Common network port + Electrical isolation
- This is a dual serial ports device data acquisitor / IoT gateway designed for the industrial environment, 1-ch RS232 and 1-ch RS485 can work simultaneously without interfering with each other using one Ethernet cable.

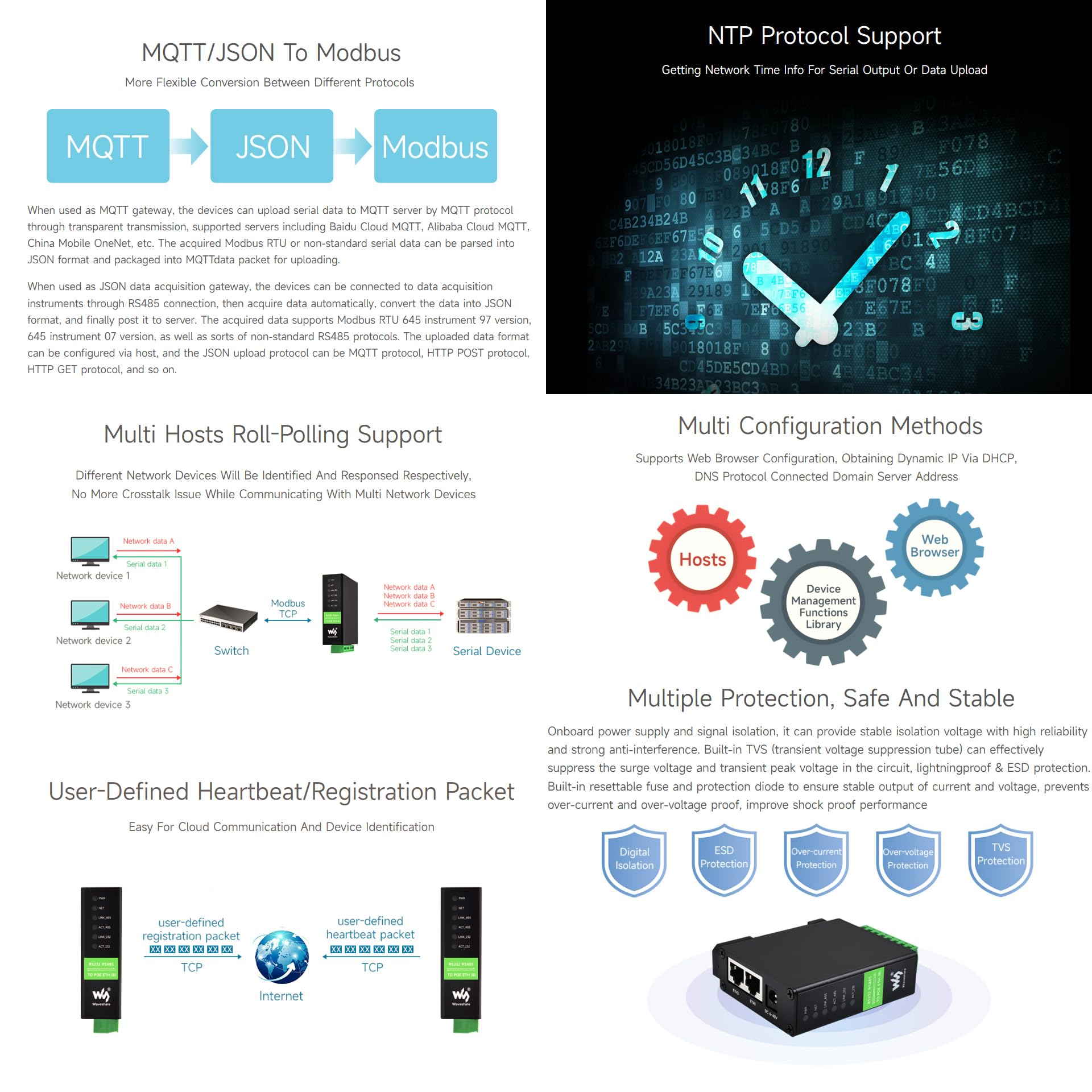

- It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS232 and RS485 to JSON, etc. The other one Ethernet port can be used as a network switch or for cascading, and the PoE* function is optional for dual Ethernet ports.
- Provides two power supply methods: DC port (outer diameter: 5.5mm, inner diameter: 2.1mm) and screw terminal. The case with rail-mount support, is small in size, easy to install, and cost-effective.
- It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring.
